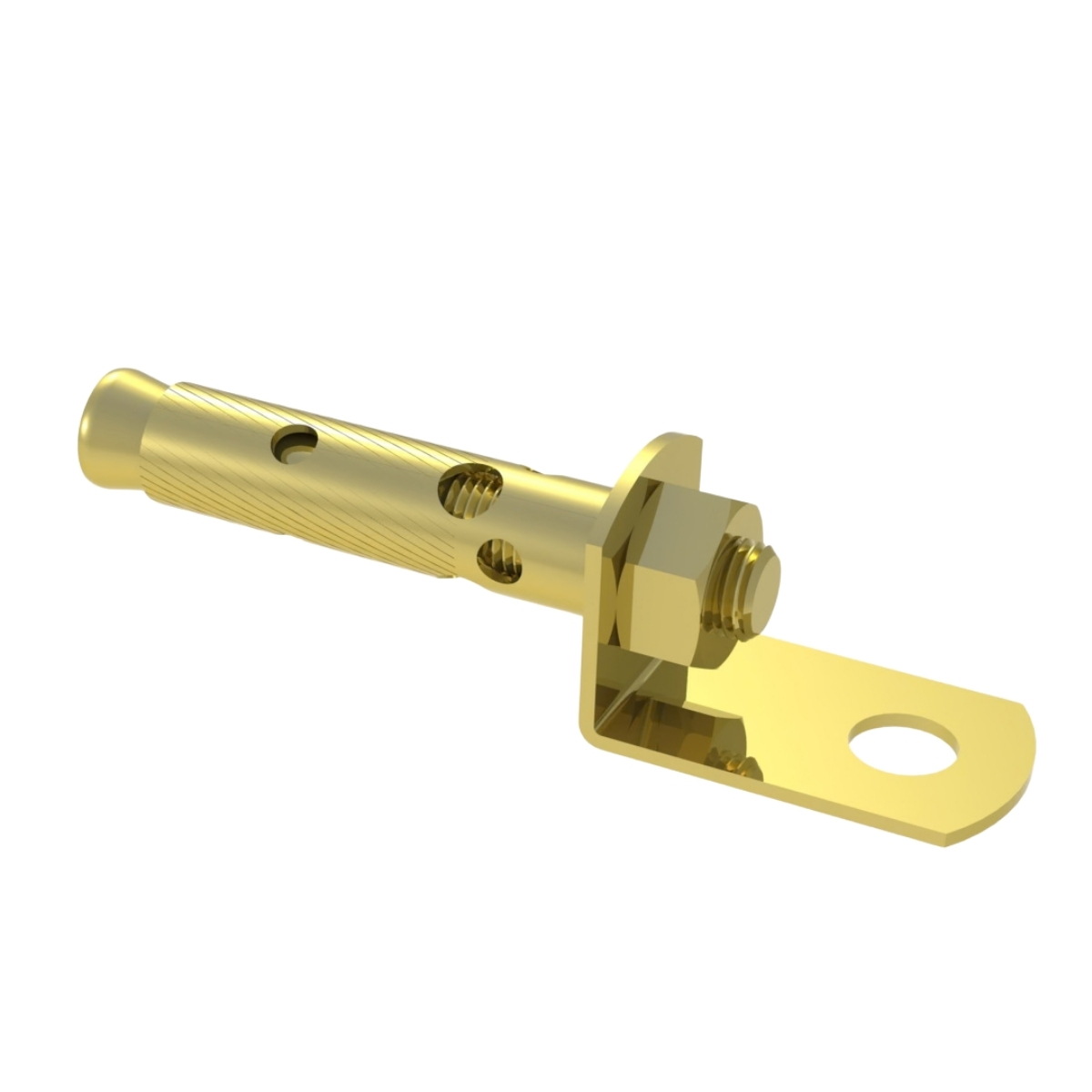

CEILING SUSPENSION ANCHOR
| SIZE | RECOMMENDED LOAD FOR EACH ANCOR (KN) |
CONTORTION MOMENT (Nm) |
|---|---|---|
| M8 | 1,8 | 11,7 |
PLACE OF USAGE
It is a kind of peg used at suspended ceiling assembly by the help of the hanger connection unit.

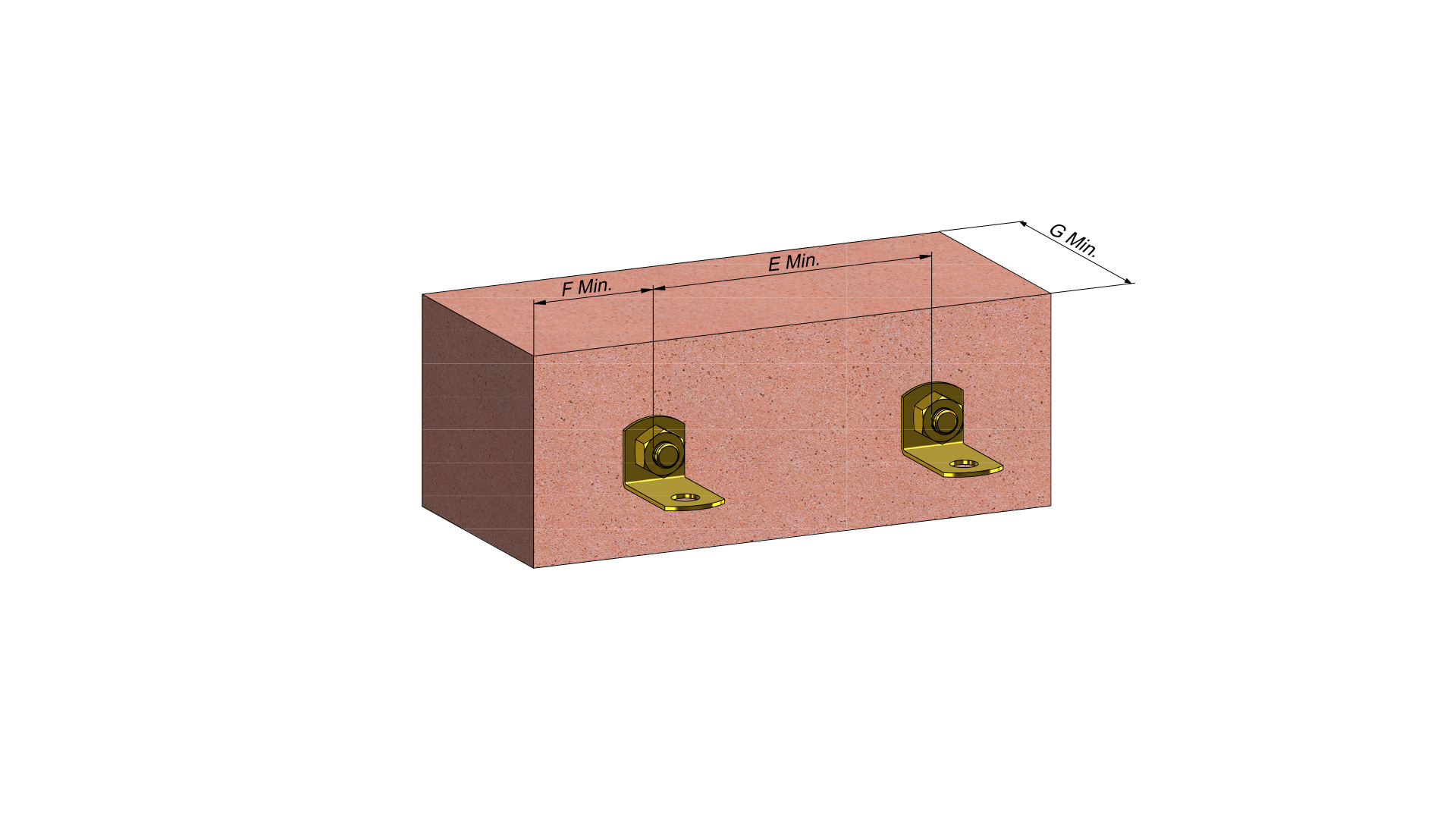

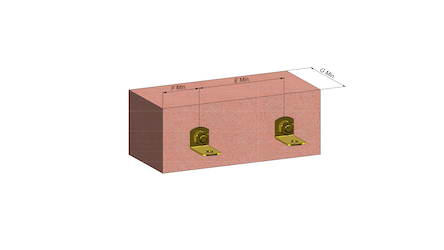

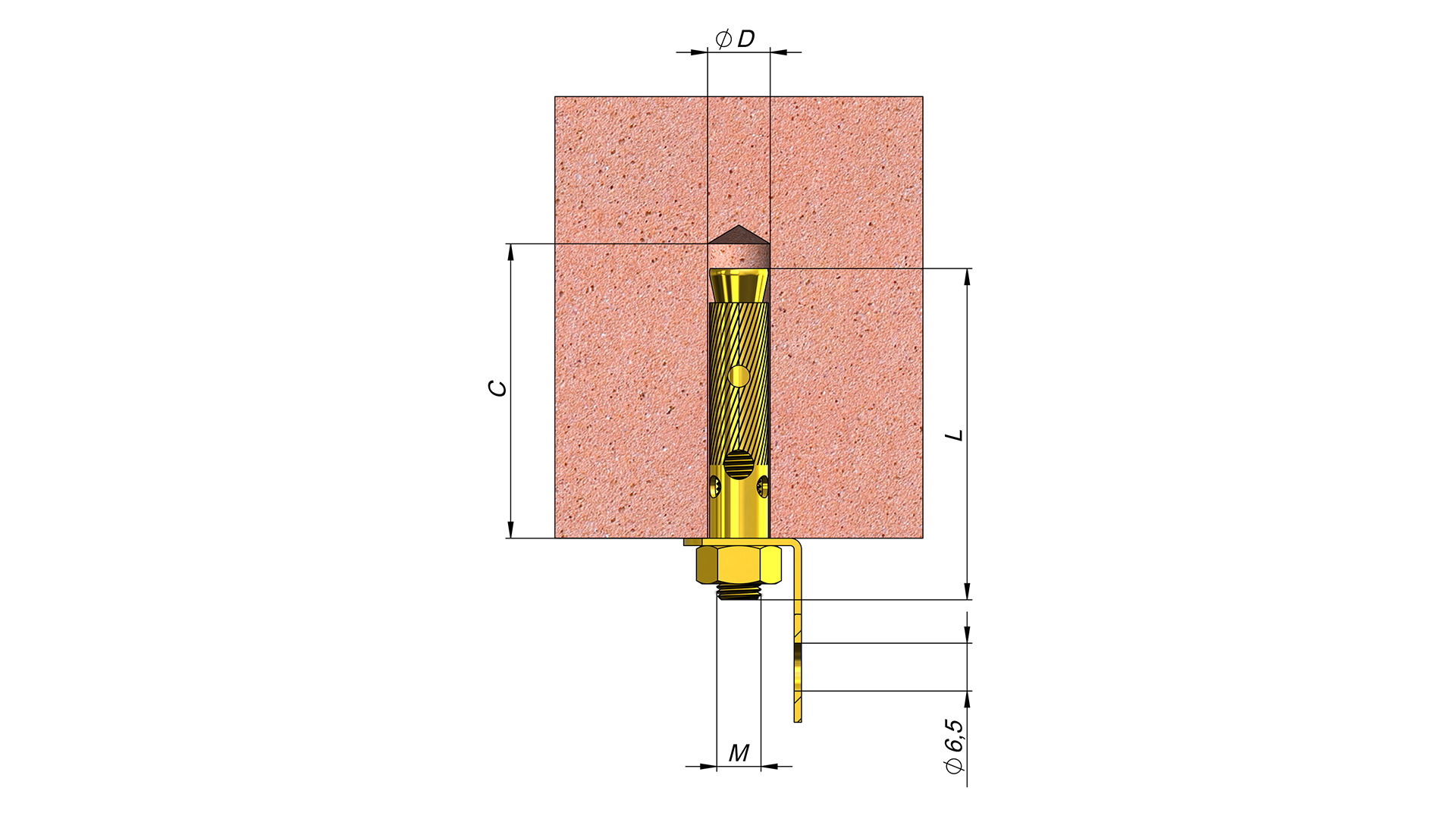

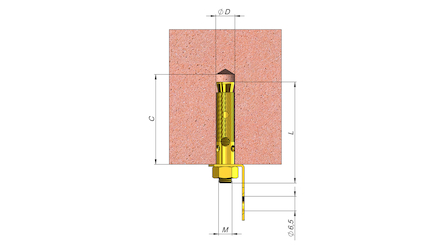

| CODE | M | ØD | L | C | Emin | Fmin | Gmin | QUANTITY PER BOX | WEIGHT PER BOX |
|---|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (Average kg) | |||
| NATD0645 | M6 | 8 | 45 | 50 | 130 | 90 | 100 | 1.500 | 27,000 |
