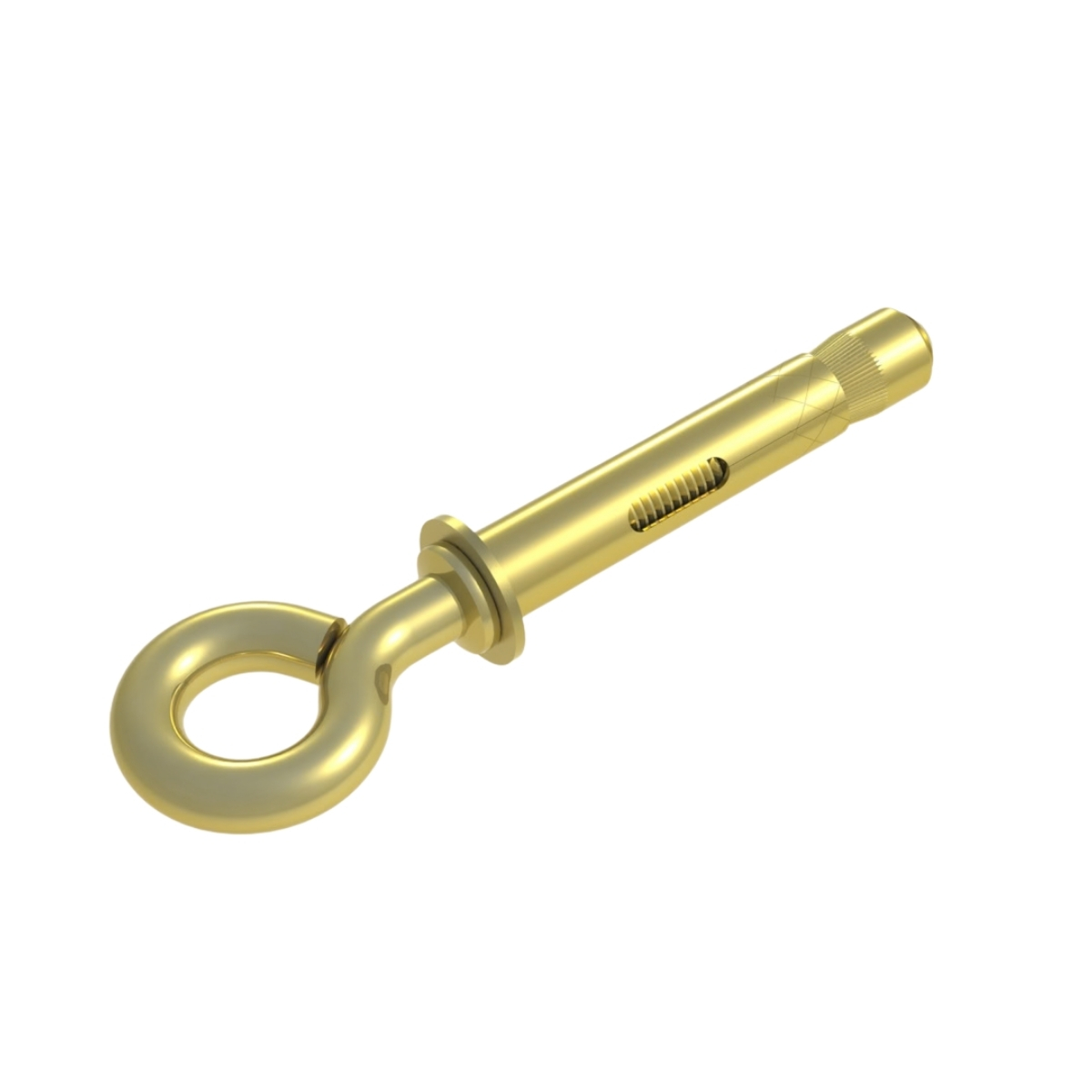

HOOK SUSPENSION ANCHOR
| SIZE | RECOMMENDED LOAD FOR EACH ANCOR (KN) |
|---|---|
| M6 | 0,5 |
| M8 | 0,8 |
| M10 | 1,5 |
PLACE OF USAGE
It is a kind of peg used at places where the hanger connection is to be requested on concrete ground.

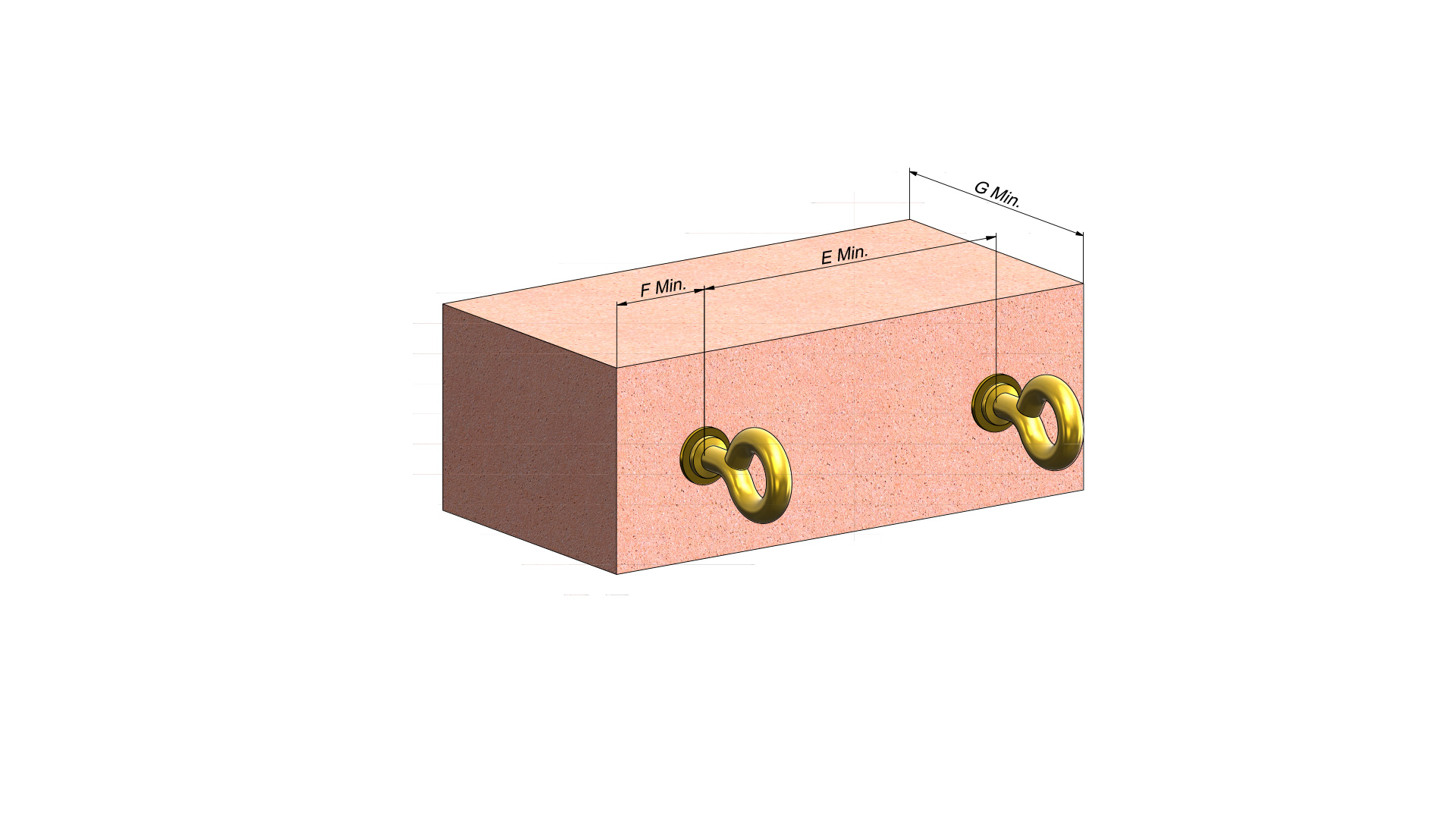

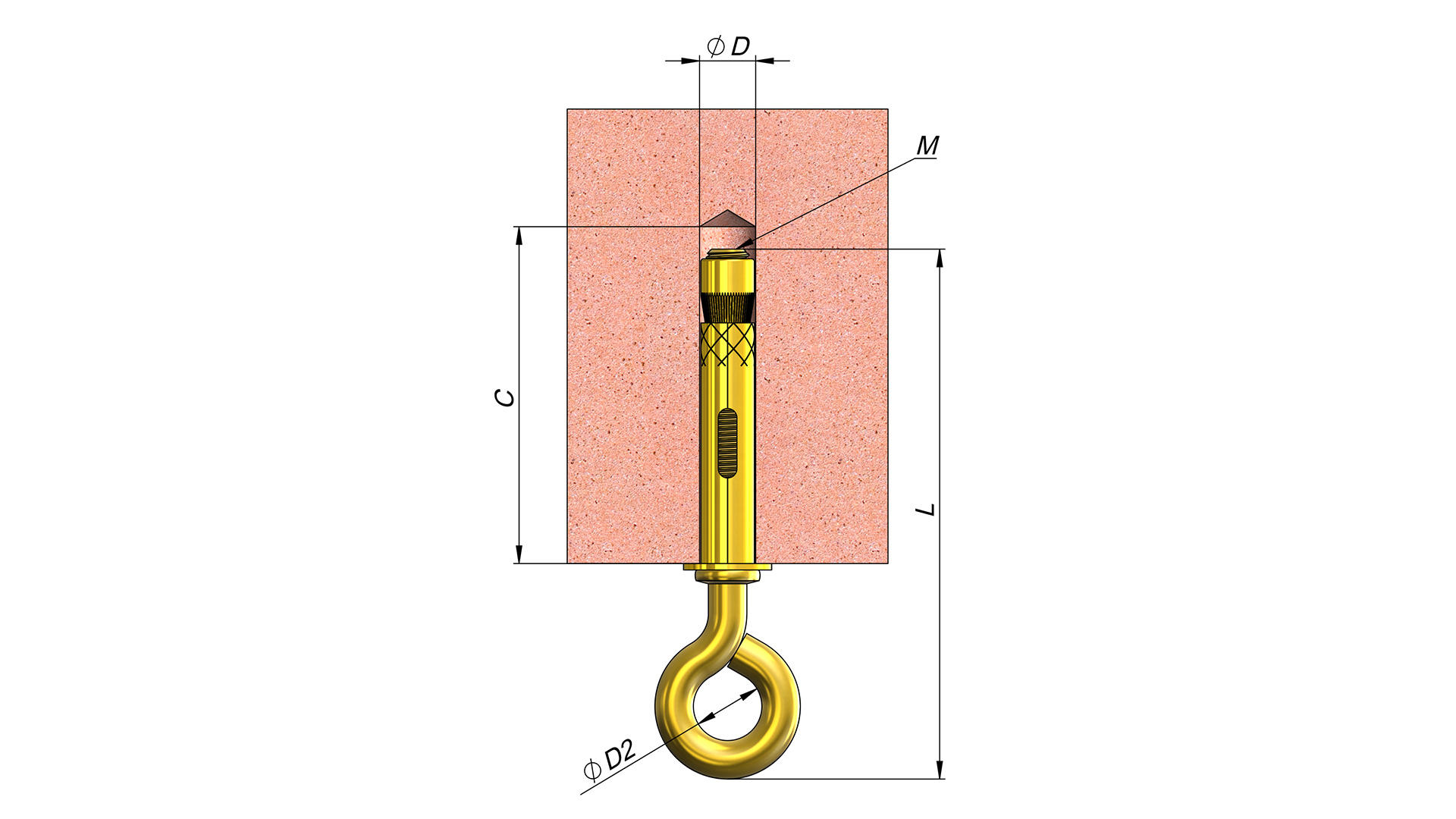

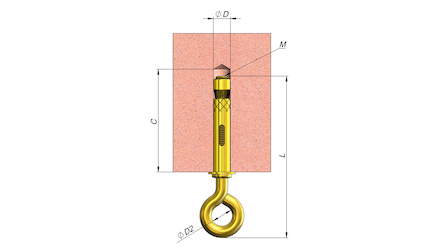

| CODE | M | ØD | L | ØD2 | C | Emin | Fmin | Gmin | QUANTITY PER BOX | WEIGHT PER BOX |
|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (Average kg) | |||
| NKD06 | M6 | 8 | 75 | 12 | 70 | 140 | 90 | 100 | 1.000 | 30,000 |
| NKD08 | M8 | 10 | 100 | 15 | 80 | 160 | 100 | 120 | 600 | 37,200 |
| NKD10 | M10 | 12 | 120 | 17 | 100 | 200 | 120 | 140 | 300 | 34,500 |
