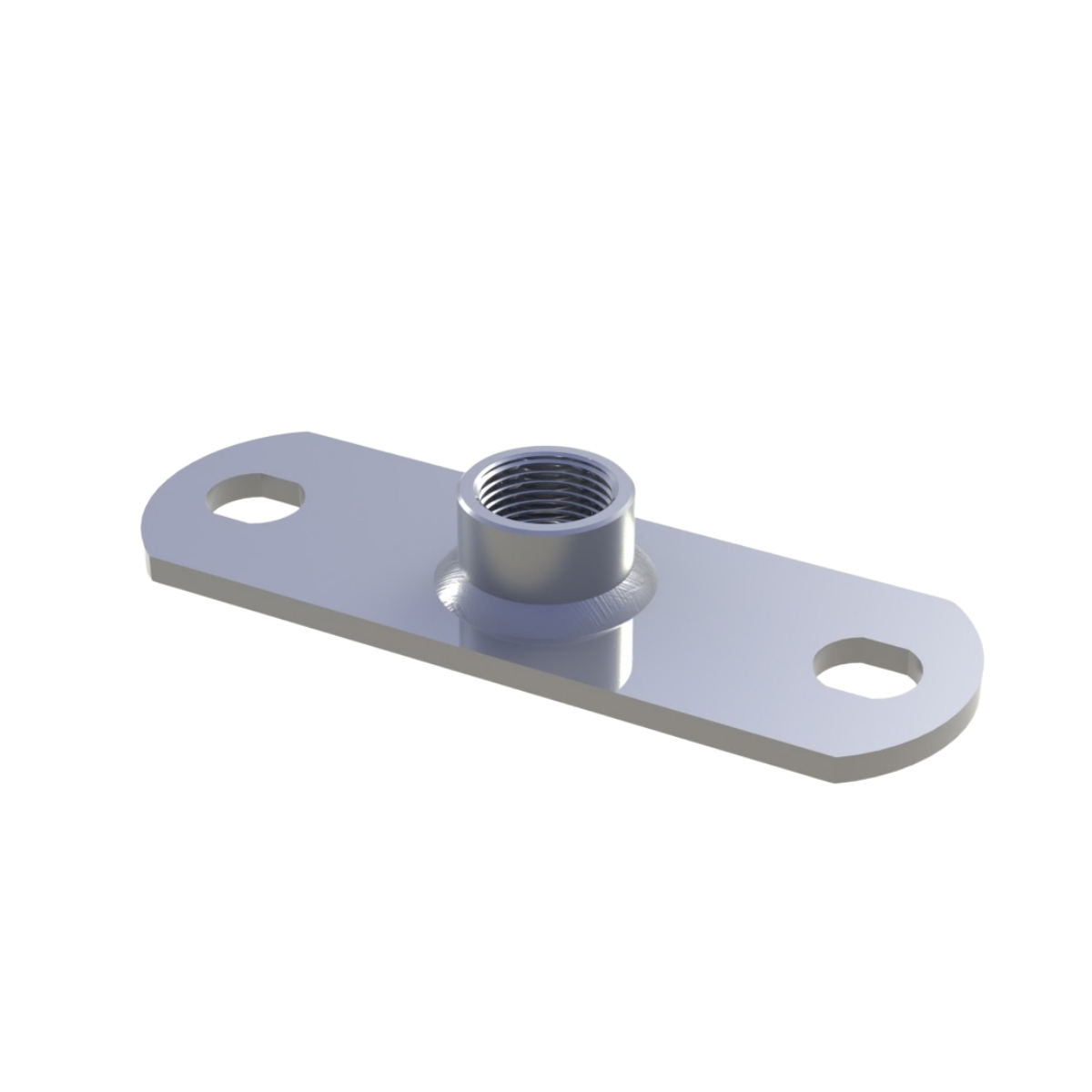

BASE PLATE (WITH MUFF)
| SIZE |
RECOMMENDED LOAD (KN) |
|---|---|
| 4x40x120 | 5,0 |
PLACE OF USAGE
Used for the connection of all kinds of peg or connection unit to all kinds of ground or canal.

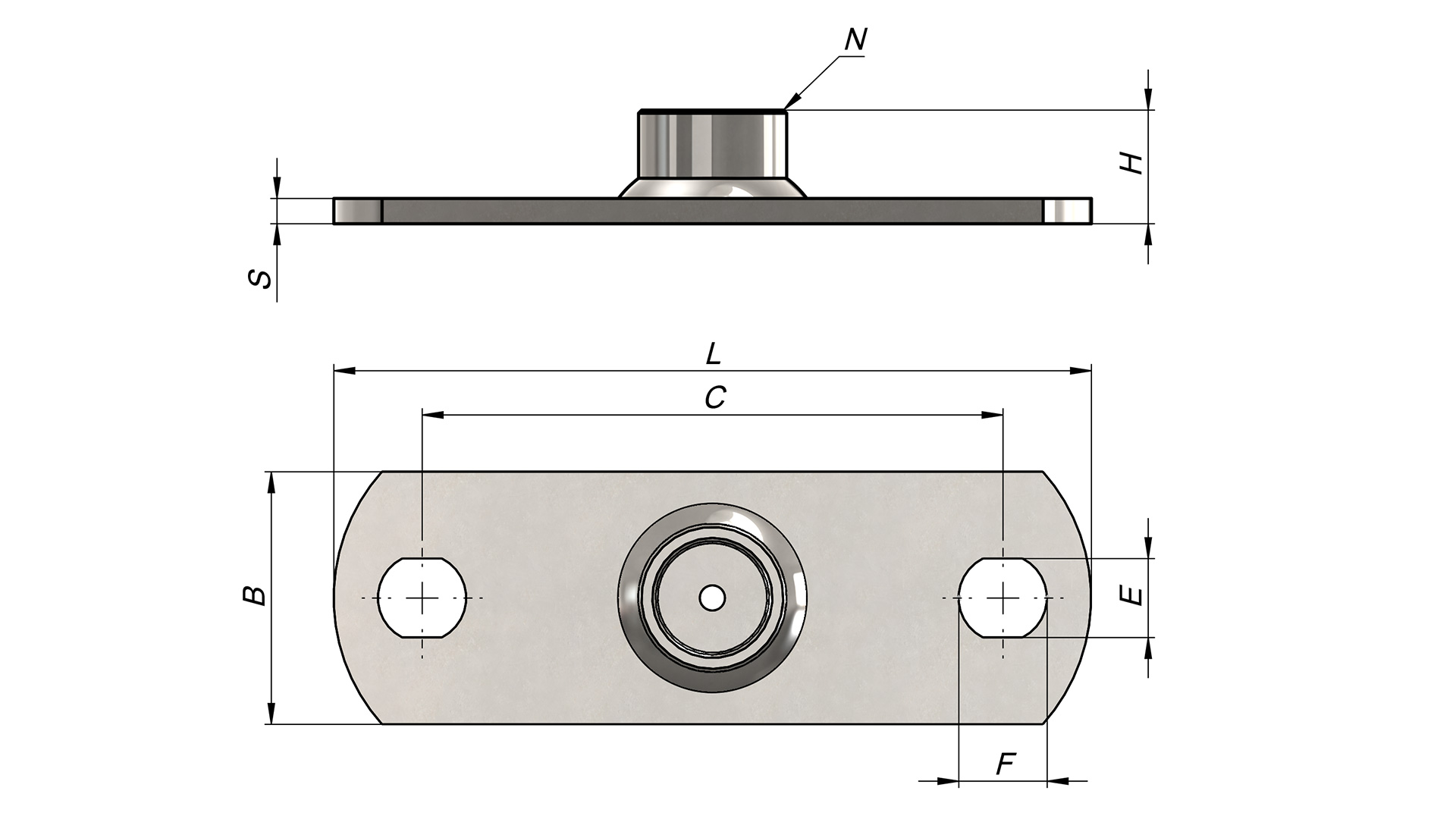

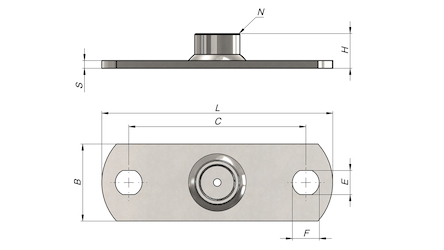

| CODE | SIZE | L | H | SxB | ExF | N | |
|---|---|---|---|---|---|---|---|
| (Manşon) | |||||||
| NZPM15440120 | 4x40x120 | 120 | 19 | 4x40 | 12,5x14 | 80 | 1/2" |
| NZPM20440120 | 4x40x120 | 120 | 21 | 4x40 | 12,5x14 | 80 | 3/4" |
| NZPM25440120 | 4x40x120 | 120 | 25 | 4x40 | 12,5x14 | 80 | 1" |
