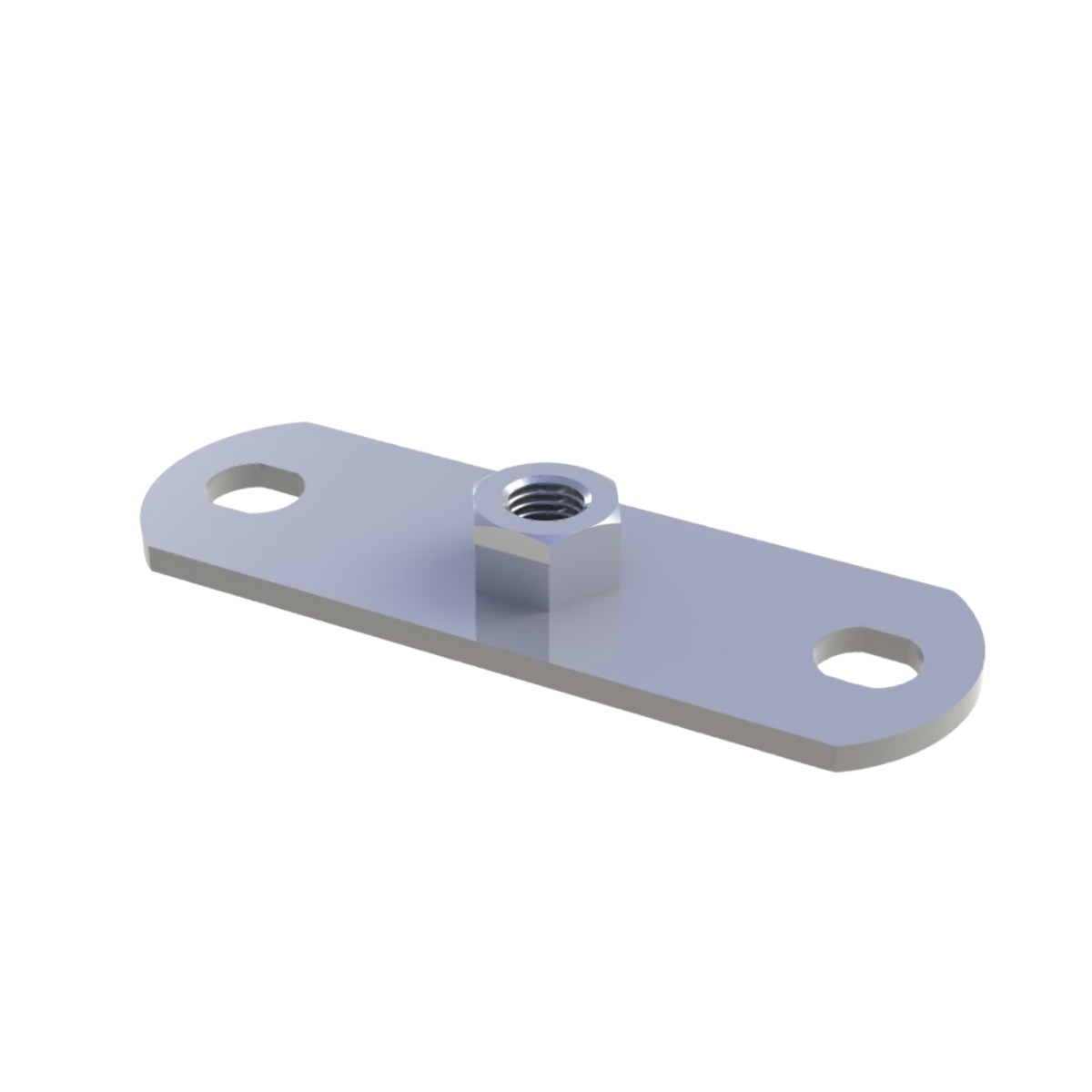

BASE PLATE (WITH NUT)
| SIZE | RECOMMENDED LOAD (KN) |
|---|---|
| 30x30x80 | 2,2 |
| 4x40x120 | 3,0 |
PLACE OF USAGE
Used for the connection of all kinds of peg or connection unit to all kinds of ground or canal.

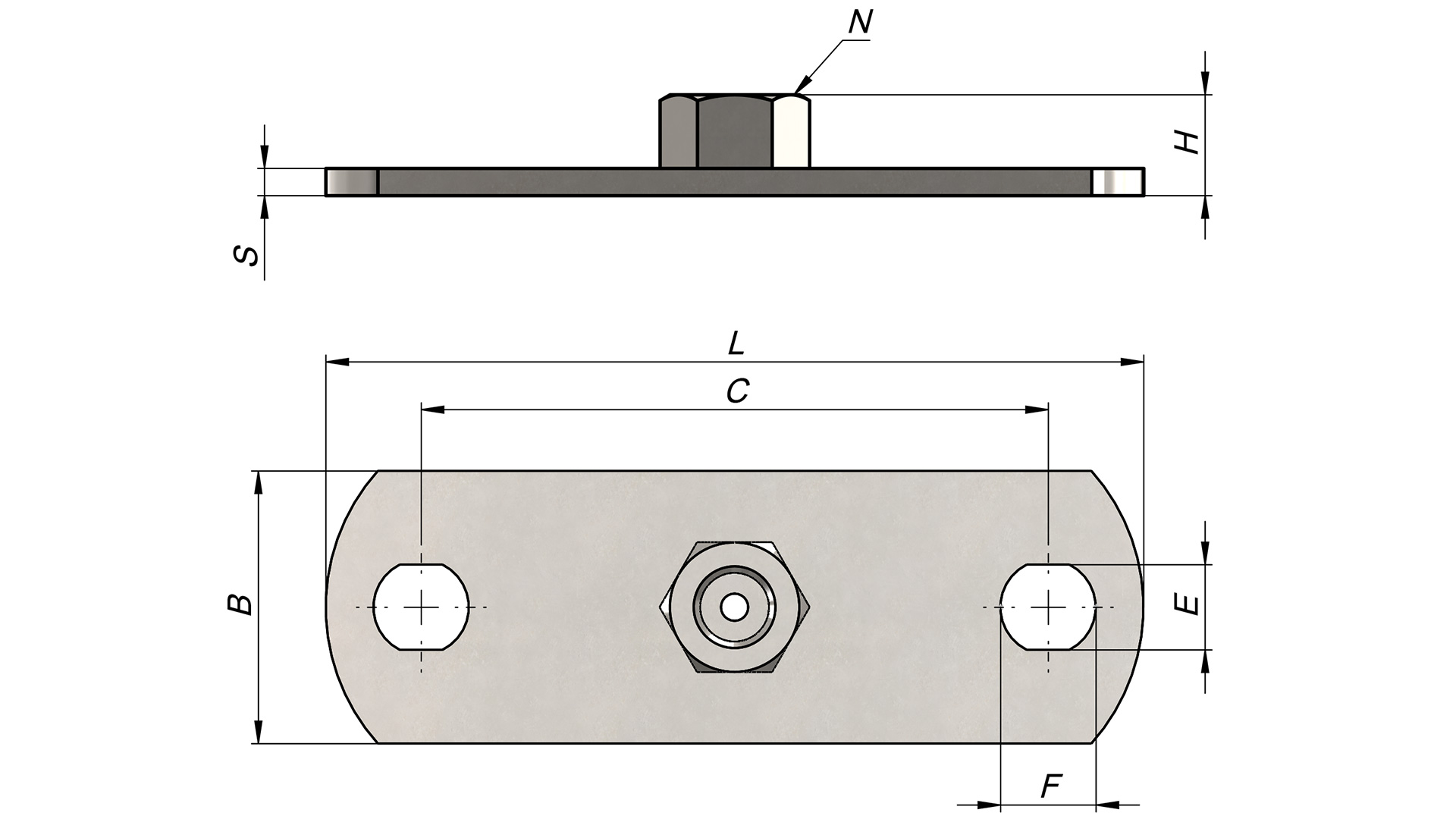

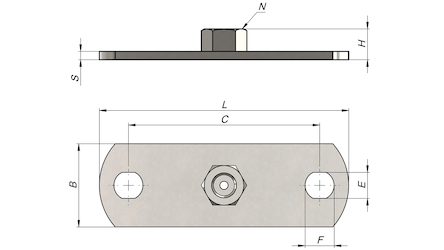

| CODE | SIZE | L | H | SxB | ExF | C | N |
|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (mm) | |||
| NZPS08330080 | 3x30x80 | 80 | 15 | 3x30 | 10,5x12 | 52 | M8 |
| NZPS10330080 | 3x30x80 | 80 | 16 | 3x30 | 10,5x12 | 52 | M10 |
| NZPS12330080 | 3x30x80 | 80 | 18 | 3x30 | 10,5x12 | 52 | M12 |
| NZPS08440120 | 4x40x120 | 120 | 16 | 4x40 | 12,5x14 | 80 | M8 |
| NZPS10440120 | 4x40x120 | 120 | 17 | 4x40 | 12,5x14 | 80 | M10 |
| NZPS12440120 | 4x40x120 | 120 | 18 | 4x40 | 12,5x14 | 80 | M12 |
| NZPS16440120 | 4x40x120 | 120 | 22 | 4x40 | 12,5x14 | 80 | M16 |
