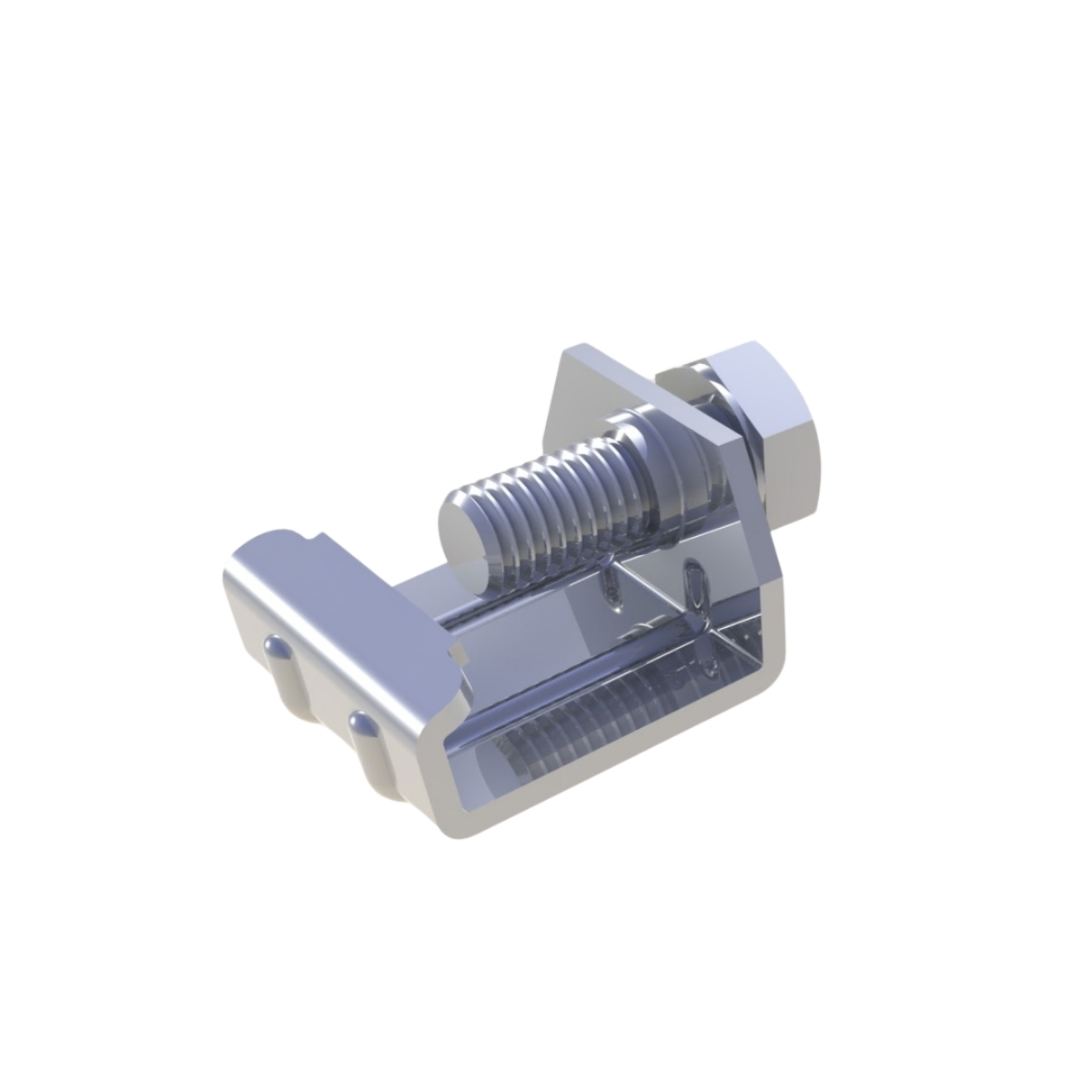

G CLIPS / VENTILATION CLAMP
PLACE OF USAGE
They are the connection units used for fixing the flange profiles which are used for the assembly of the air conditioning canals to each other.

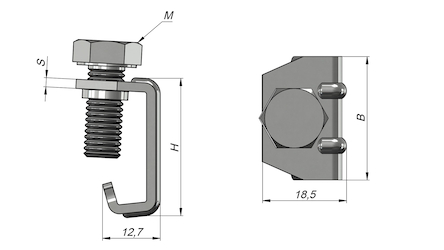

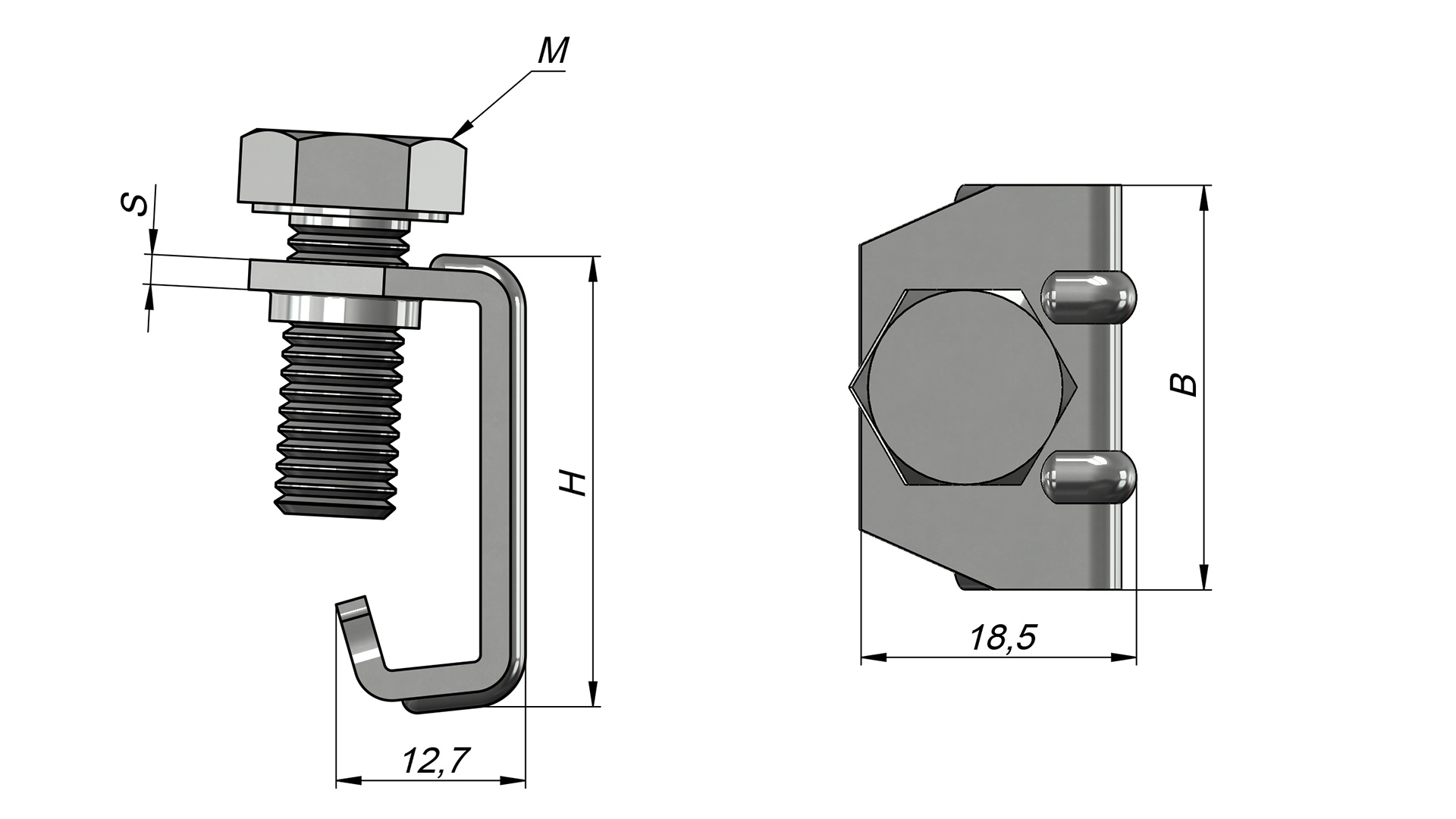

| CODE | SIZE | SxB | M | H | QUANTITY PER BOX | WEIGHT PER BOX |
|---|---|---|---|---|---|---|
| (mm) | (mm) | (Average kg) | ||||
| NGK08 | 30 | 2x27 | M8 | 30 | 300 | 10x010 |
