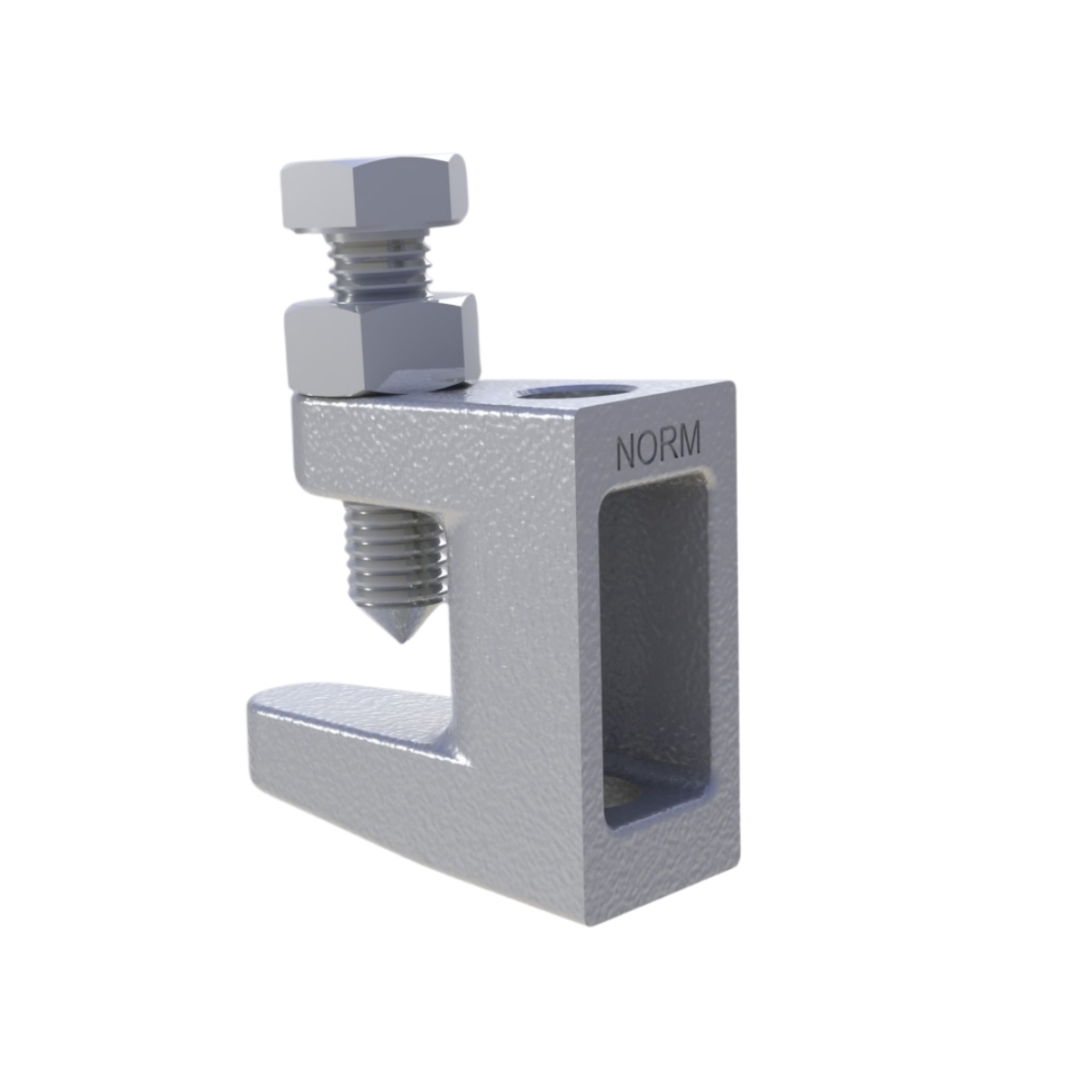

PROFILE HANGER CLAMP
| BREAKING LOAD (KN) |
|---|
| 15,00 |
PLACE OF USAGE
Used for fixing the pipes, air canals and sprinkler systems to the building construction.

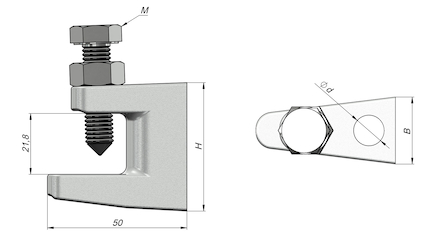

| CODE | SIZE | Ød | B | M | H | QUANTITY PER BOX | WEIGHT PER BOX |
|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (Average kg) | ||||
| NPM0810 | 46 | 11 | 24 | M10 | 46 | 50 | 9,022 |
