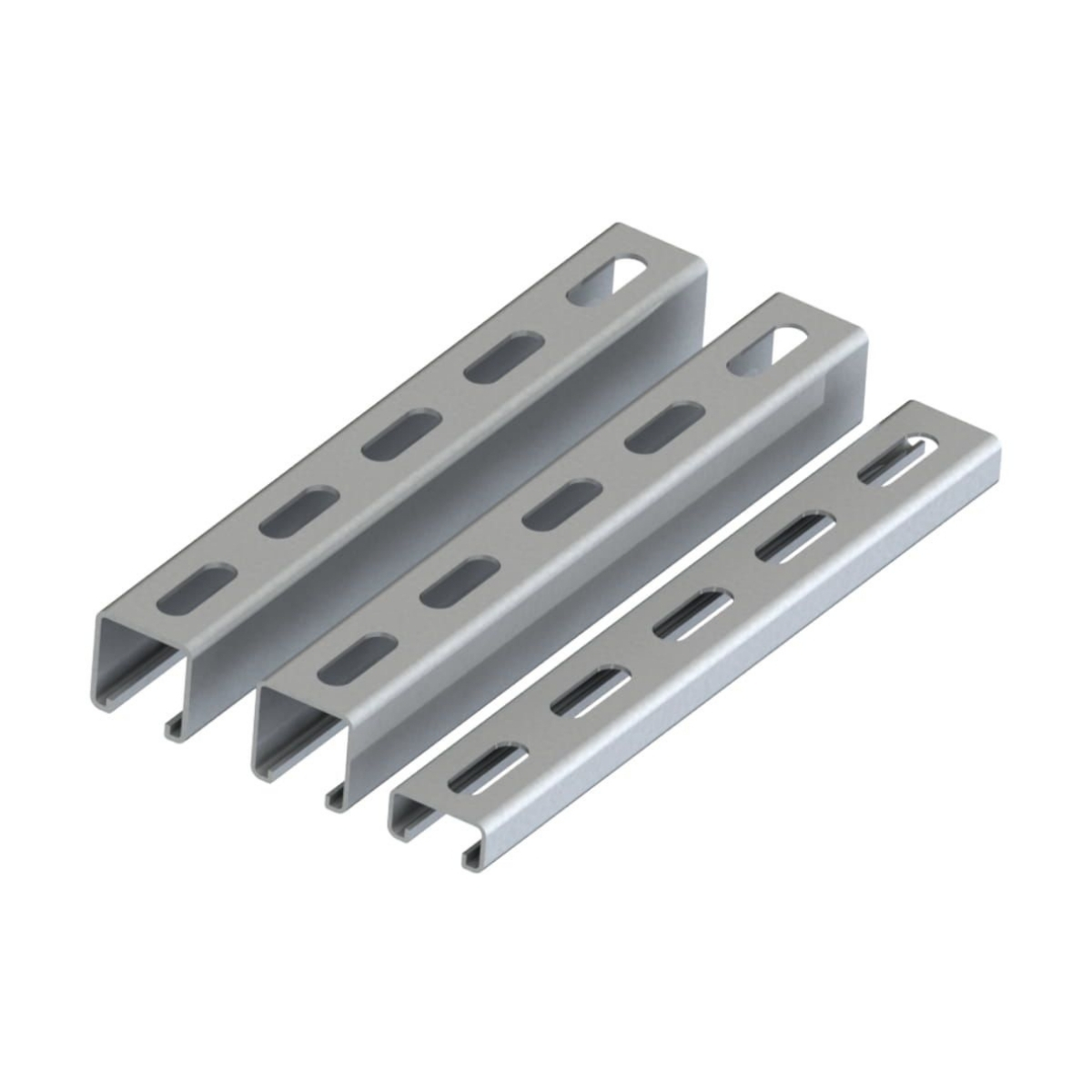

G PERFORATED CHANNEL
PLACE OF USAGE

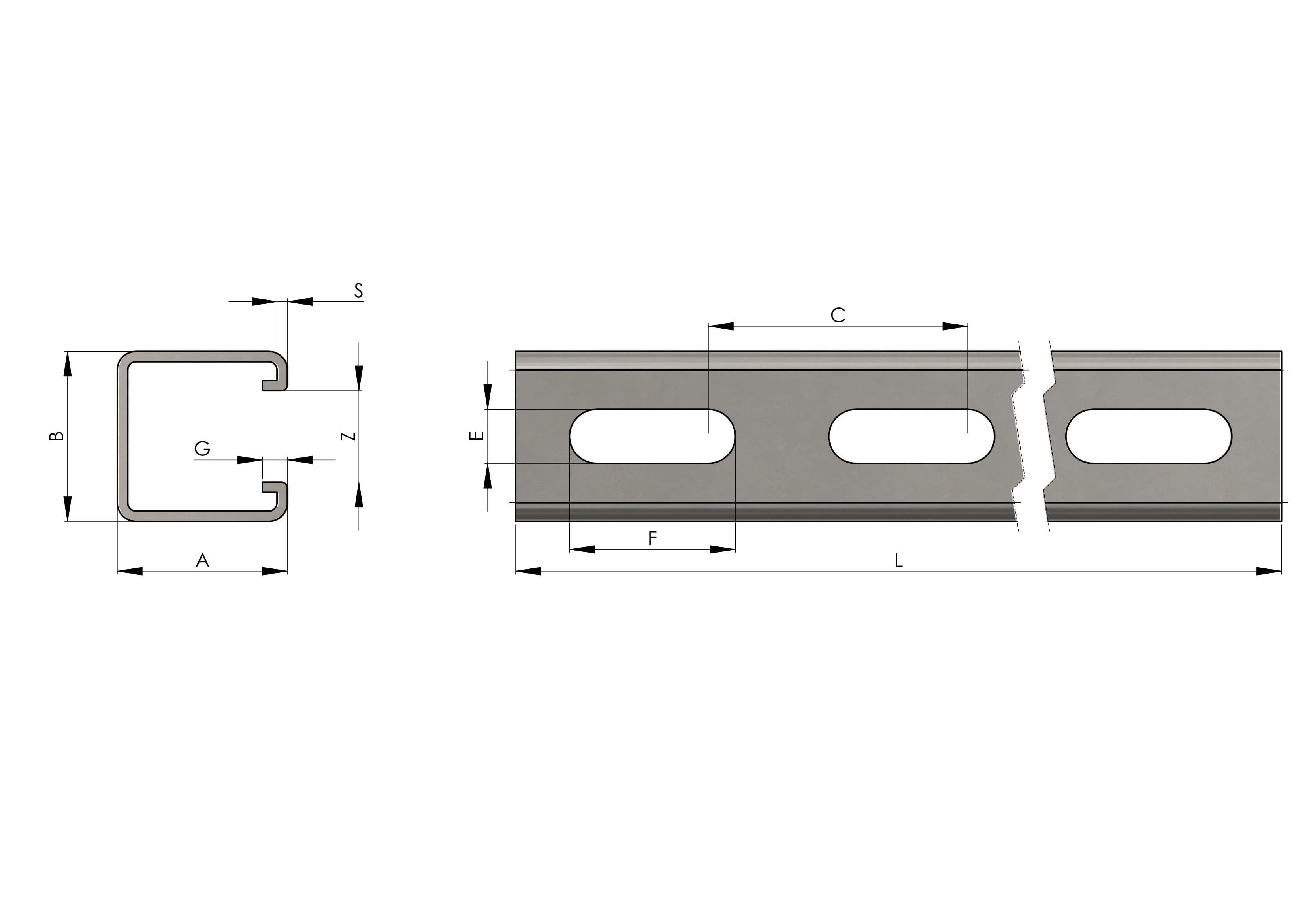

| CODE | SIZE | A (mm) |
B (mm) |
S (mm) |
Z (mm) |
G (mm) |
E (mm) |
F (mm) |
C (mm) |
L (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| NGK242 | 41×21×2 | 21 | 41 | 2 | 22 | 6 | 14 | 40 | 63 | 4000 |
| NGK244 | 41×41×2 | 41 | 41 | 2 | 22 | 6 | 14 | 40 | 63 | 4000 |
| NGK344-L | 41×41×2,5 | 41 | 41 | 2,5 | 22 | 6 | 14 | 40 | 63 | 4000 |
| NGK346-L | 41×62×2,5 | 62 | 41 | 2,5 | 22 | 6 | 14 | 40 | 63 | 4000 |
