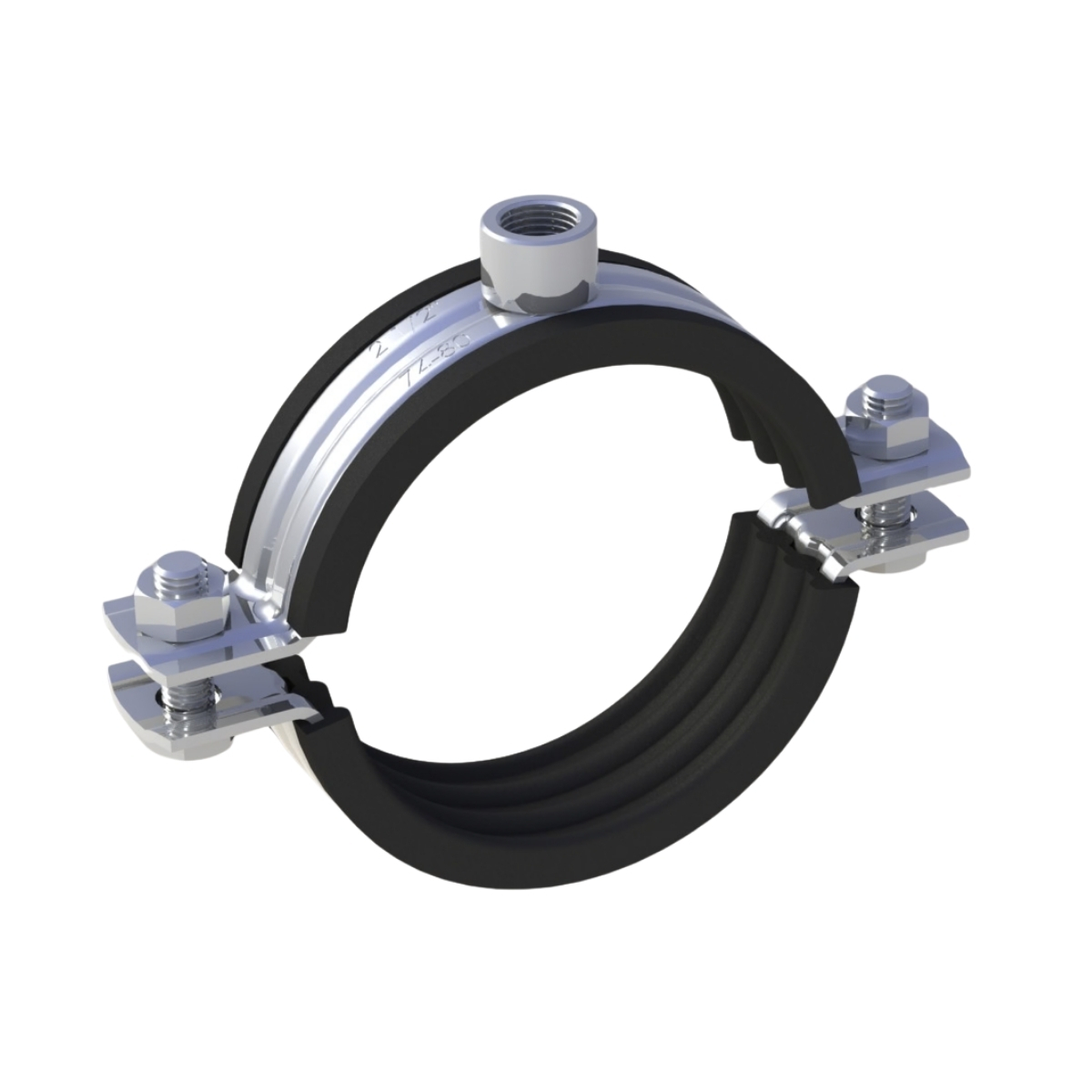

HEAVY DUTY PIPE CLAMP WITH MUFF
| SIZE | BREAKING LOAD (KN) |
RECOMMENDED LOAD (KN) |
|---|---|---|
| 1/4" - 95-104 | 10,00 | 2,75 |
| 102-112 - 4" | 14,00 | 3,75 |
| 122-138 - 10" | 20,00 | 6,00 |
| 12" - 20" | 35,00 | 11,70 |
PLACE OF USAGE
Used in the assembly of heavy load clips and pipes carrying heavy load.

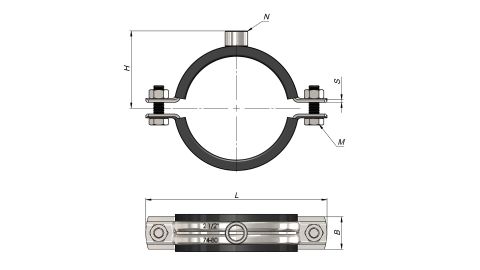

| CODE | SIZE | CLAMPING RANGE |
|
|
|
SxB |
|
QUANTITY PER BOX | WEIGHT PER BOX | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (Manşon) | (Average kg) | ||||||||
| NAMC008 | 1/4" | 12 - 17 | 75 | 27,2 | M8(6.8) | 2x25 | 1/2"-3/4"-1" | 50 | 6,744 | ||||
| NAMC015 | 1/2" | 21 - 28 | 81 | 31,2 | M8(6.8) | 2x25 | 1/2"-3/4"-1" | 50 | 7,259 | ||||
| NAMC020 | 3/4" | 25 - 32 | 87 | 34,2 | M8(6.8) | 2x25 | 1/2"-3/4"-1" | 50 | 7,701 | ||||
| NAMC025 | 1" | 33 - 40 | 94 | 37,7 | M8(6.8) | 2x25 | 1/2"-3/4"-1" | 50 | 8,264 | ||||
| NAMC032 | 1 1/4" | 41 - 48 | 103 | 42,7 | M8(6.8) | 2x25 | 1/2"-3/4"-1" | 40 | 7,183 | ||||
| NAMC040 | 1 1/2" | 48 - 56 | 111 | 45,7 | M8(6.8) | 2x25 | 1/2"-3/4"-1" | 40 | 7,704 | ||||
| NAMC047 | 53-59 | 53 - 59 | 120 | 49,7 | M8(6.8) | 2x25 | 1/2"-3/4"-1" | 30 | 6,206 | ||||
| NAMC050 | 2" | 60 - 69 | 125 | 52,2 | M8(6.8) | 2x25 | 1/2"-3/4"-1" | 30 | 6,477 | ||||
| NAMC060 | 67-75 | 67 - 75 | 134 | 56,2 | M8(6.8) | 2x25 | 1/2"-3/4"-1" | 25 | 5,793 | ||||
| NAMC065 | 2 1/2" | 75 - 81 | 141 | 60,2 | M8(6.8) | 2x25 | 1/2"-3/4"-1" | 25 | 6,100 | ||||
| NAMC075 | 83-91 | 83 - 91 | 149 | 64,2 | M8(6.8) | 2x25 | 1/2"-3/4"-1" | 30 | 7,661 | ||||
| NAMC080 | 3" | 87 - 95 | 154 | 66,2 | M8(6.8) | 2x25 | 1/2"-3/4"-1" | 30 | 7,862 | ||||
| NAMC085 | 95-104 | 95 - 104 | 161 | 70,2 | M8(6.8) | 2x25 | 1/2"-3/4"-1" | 25 | 6,904 | ||||
| NAMC095 | 102-112 | 102 - 112 | 169 | 74,2 | M8(6.8) | 2,5x30 | 1/2"-3/4"-1" | 25 | 9,334 | ||||
| NAMC100 | 4" | 109 - 119 | 178 | 79,8 | M8(6.8) | 2,5x30 | 1/2"-3/4"-1" | 25 | 9,749 | ||||
| NAMC110 | 122-138 | 122 - 138 | 192 | 87,3 | M10(8.8) | 3x30 | 1/2"-3/4"-1" | 20 | 10,601 | ||||
| NAMC120 | 128-141 | 128 - 141 | 197 | 89,8 | M10(8.8) | 3x30 | 1/2"-3/4"-1" | 20 | 10,889 | ||||
| NAMC125 | 5" | 136 - 147 | 204 | 93,3 | M10(8.8) | 3x30 | 1/2"-3/4"-1" | 10 | 5,764 | ||||
| NAMC140 | 153-164 | 153 - 164 | 220 | 101,3 | M10(8.8) | 3x30 | 1/2"-3/4"-1" | 10 | 6,185 | ||||
| NAMC150 | 6" | 164 - 174 | 229 | 105,8 | M10(8.8) | 3x30 | 1/2"-3/4"-1" | 10 | 6,395 | ||||
| NAMC180 | 196-209 | 196 - 209 | 264 | 123,3 | M10(8.8) | 3x30 | 1/2"-3/4"-1" | 20 | 14,188 | ||||
| NAMC200 | 8" | 214 - 226 | 279 | 130,8 | M10(8.8) | 4x30 | 1/2"-3/4"-1" | 15 | 14,495 | ||||
| NAMC250 | 10" | 266 - 274 | 335 | 158,8 | M10(8.8) | 4x30 | 1/2"-3/4"-1" | 15 | 18,838 | ||||
| NAMC300 | 12" | 308 - 324 | 400 | 182 | M12(8.8) | 4x40 | 1/2"-3/4"-1" | 10 | 17,988 | ||||
| NAMC350 | 14" | 340 - 356 | 432 | 198 | M12(8.8) | 4x40 | 1/2"-3/4"-1" | 8 | 15,685 | ||||
| NAMC400 | 16" | 395 - 411 | 485 | 226 | M12(8.8) | 4x40 | 1/2"-3/4"-1" | 8 | 17,884 | ||||
| NAMC450 | 18" | 447 - 463 | 572 | 253 | M16(6.8) | 4x40 | 1/2"-3/4"-1" | 5 | 20,115 | ||||
| NAMC500 | 20" | 499 - 515 | 624 | 279 | M16(6.8) | 4x40 | 1/2"-3/4"-1" | 5 | 22,110 |
