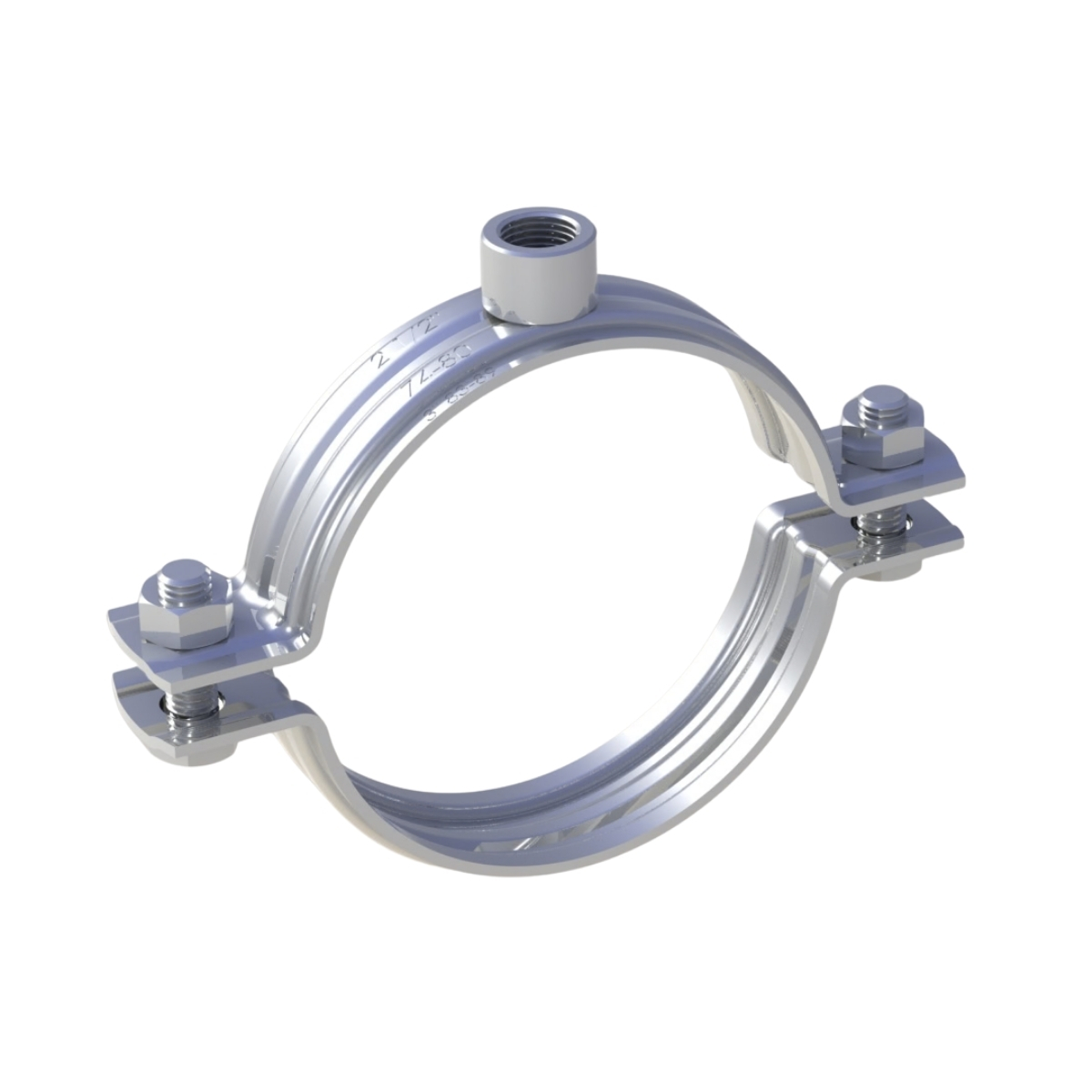

HEAVY DUTY PIPE CLAMP WITH MUFF WITHOUT RUBBER
| SIZE | BREAKING LOAD (KN) |
RECOMMENDED LOAD (KN) |
|---|---|---|
| 1/2" - 101-109 | 10,00 | 2,75 |
| 4" - 116-126 | 14,00 | 3,75 |
| 130-141 - 10" | 20,00 | 6,00 |
| 12" - 20" | 35,00 | 11,70 |
PLACE OF USAGE
Used in the assembly of heavy load clips and pipes carrying heavy load.
| CODE | SIZE | CLAMPING RANGE |
|
|
|
|
N | QUANTITY PER BOX | WEIGHT PER BOX | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (Manşon) | (Average kg) | ||||||||
| NAMCL015 | 1/2" | 18 - 23 | 75 | 27,2 | M8(6.8) | 2x25 | 1/2" - 3/4" - 1" | 50 | 6,333 | ||||
| NAMCL020 | 3/4" | 26 - 31 | 81 | 31,2 | M8(6.8) | 2x25 | 1/2" - 3/4" - 1" | 50 | 6,691 | ||||
| NAMCL025 | 1" | 31 - 37 | 87 | 34,2 | M8(6.8) | 2x25 | 1/2" - 3/4" - 1" | 50 | 7,016 | ||||
| NAMCL032 | 1 1/4" | 38 - 44 | 94 | 37,7 | M8(6.8) | 2x25 | 1/2" - 3/4" - 1" | 50 | 7,429 | ||||
| NAMCL040 | 1 1/2" | 46 - 53 | 103 | 42,7 | M8(6.8) | 2x25 | 1/2" - 3/4" - 1" | 50 | 7,911 | ||||
| NAMCL047 | 54-60 | 54 - 60 | 111 | 45,7 | M8(6.8) | 2x25 | 1/2" - 3/4" - 1" | 40 | 6,772 | ||||
| NAMCL050 | 2" | 60 - 68 | 120 | 49,7 | M8(6.8) | 2x25 | 1/2" - 3/4" - 1" | 40 | 7,149 | ||||
| NAMCL060 | 66-73 | 66 - 73 | 125 | 52,2 | M8(6.8) | 2x25 | 1/2" - 3/4" - 1" | 40 | 7,400 | ||||
| NAMCL065 | 2 1/2" | 74 - 81 | 134 | 56,2 | M8(6.8) | 2x25 | 1/2" - 3/4" - 1" | 30 | 5,936 | ||||
| NAMCL075 | 82-88 | 82 - 88 | 141 | 60,2 | M8(6.8) | 2x25 | 1/2" - 3/4" - 1" | 30 | 6,202 | ||||
| NAMCL080 | 3" | 88 - 97 | 149 | 64,2 | M8(6.8) | 2x25 | 1/2" - 3/4" - 1" | 30 | 6,494 | ||||
| NAMCL085 | 93-100 | 93 - 100 | 154 | 66,2 | M8(6.8) | 2x25 | 1/2" - 3/4" - 1" | 30 | 6,654 | ||||
| NAMCL095 | 101-109 | 101 - 109 | 161 | 70,2 | M8(6.8) | 2x25 | 1/2" - 3/4" - 1" | 30 | 6,920 | ||||
| NAMCL100 | 4" | 110 - 118 | 169 | 74,2 | M8(6.8) | 2,5x30 | 1/2" - 3/4" - 1" | 30 | 9,701 | ||||
| NAMCL110 | 116-126 | 116 - 126 | 178 | 79,8 | M8(6.8) | 2,5x30 | 1/2" - 3/4" - 1" | 30 | 10,108 | ||||
| NAMCL120 | 130-141 | 130- 141 | 192 | 87,3 | M10(8.8) | 3x30 | 1/2" - 3/4" - 1" | 10 | 4,866 | ||||
| NAMCL125 | 5" | 136 - 145 | 197 | 89,8 | M10(8.8) | 3x30 | 1/2" - 3/4" - 1" | 10 | 4,983 | ||||
| NAMCL140 | 144-154 | 144 - 154 | 204 | 93,3 | M10(8.8) | 3x30 | 1/2" - 3/4" - 1" | 10 | 5,137 | ||||
| NAMCL150 | 6" | 160 - 169 | 220 | 101,3 | M10(8.8) | 3x30 | 1/2" - 3/4" - 1" | 10 | 5,488 | ||||
| NAMCL180 | 170-180 | 170 - 180 | 229 | 105,8 | M10(8.8) | 3x30 | 1/2" - 3/4" - 1" | 20 | 10,878 | ||||
| NAMCL190 | 202-214 | 202 - 214 | 264 | 123,3 | M10(8.8) | 3x30 | 1/2" - 3/4" - 1" | 20 | 12,418 | ||||
| NAMCL200 | 8" | 219 - 230 | 279 | 130,8 | M10(8.8) | 4x30 | 1/2" - 3/4" - 1" | 15 | 13,098 | ||||
| NAMCL250 | 10" | 273 - 283 | 335 | 158,8 | M10(8.8) | 4x30 | 1/2" - 3/4" - 1" | 15 | 15,613 | ||||
| NAMCL300 | 12" | 317 - 333 | 400 | 182 | M12(8.8) | 4x40 | 1/2" - 3/4" - 1" | 10 | 15,543 | ||||
| NAMCL350 | 14" | 349 - 365 | 432 | 198 | M12(8.8) | 4x40 | 1/2" - 3/4" - 1" | 8 | 13,529 | ||||
| NAMCL400 | 16" | 395 - 411 | 485 | 226 | M12(8.8) | 4x40 | 1/2" - 3/4" - 1" | 8 | 15,328 | ||||
| NAMCL450 | 18" | 447 - 463 | 572 | 253 | M16(6.8) | 4x40 | 1/2" - 3/4" - 1" | 5 | 16,765 | ||||
| NAMCL500 | 20" | 499 - 515 | 624 | 279 | M16(6.8) | 4x40 | 1/2" - 3/4" - 1" | 5 | 18,360 |
