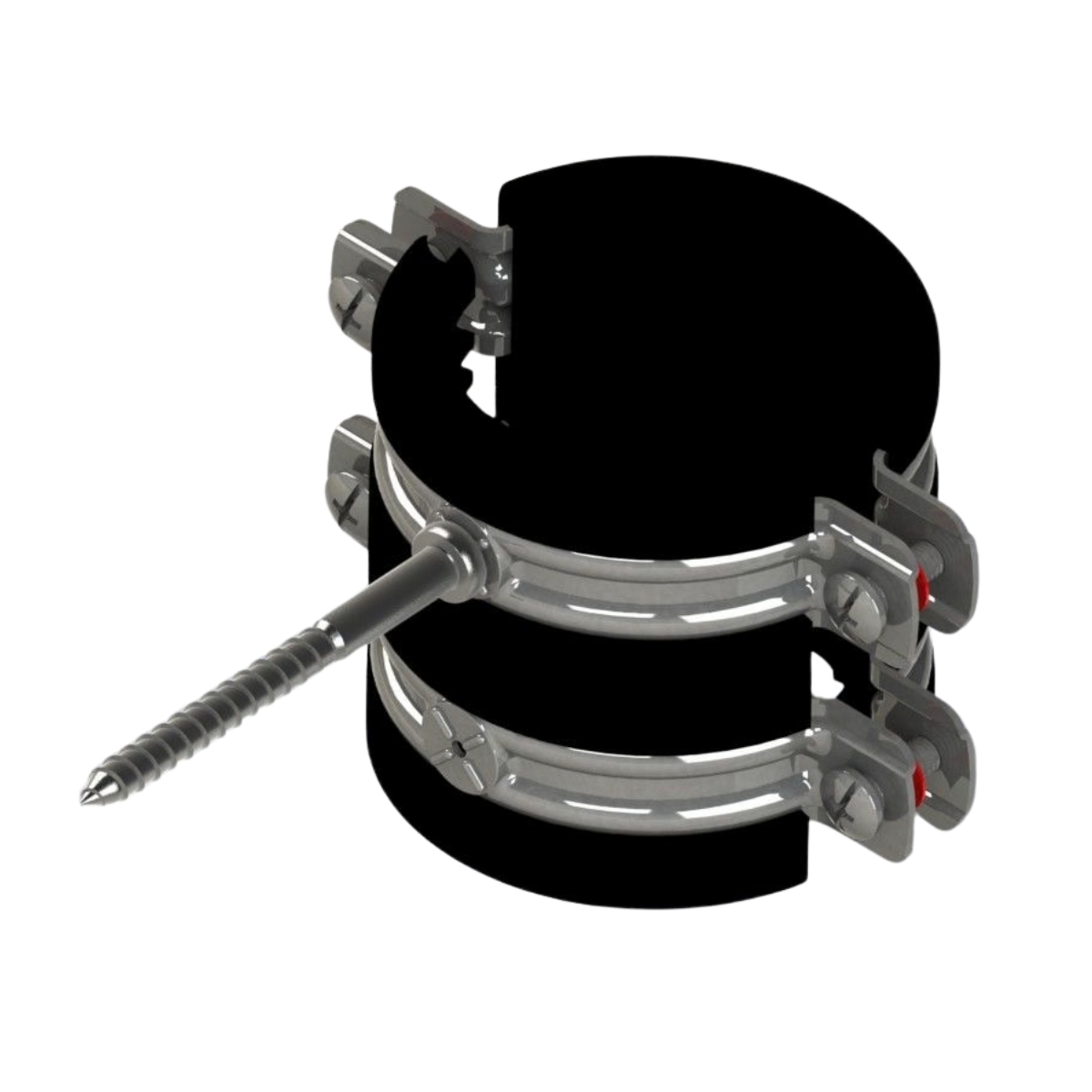

SILENT CLAMP WITH TRIPHONE SET
| SIZE | BREAKING LOAD | RECOMMENDED LOAD |
|---|---|---|
| (KN) | (KN) | |
| Ø50 | 4,8 | 1,6 |
| Ø75 | 4,8 | 1,6 |
| Ø110 | 6,9 | 2,3 |
PLACE OF USAGE

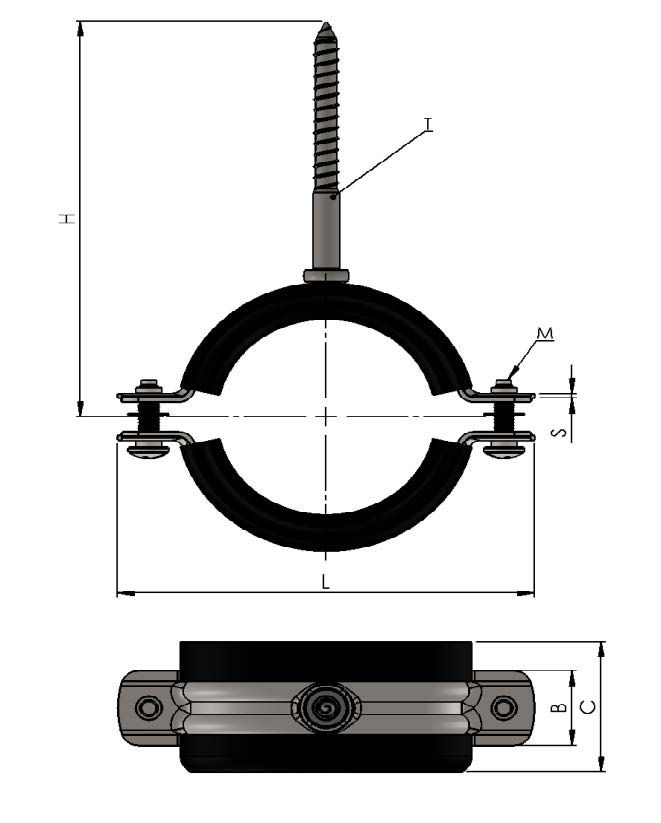

| CODE | SIZE | CLAMPING RANGE | L | H | M | SxB | N | C |
|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| NSST50 | Ø50 | 49-51 | 105 | 105,5 | M5 | 1,2x20 | Ø7X70 | 38,5 |
| NSST75 | Ø75 | 70-76 | 134 | 118 | M6 | 1,5x25 | Ø7X70 | 39,5 |
| NSST110 | Ø110 | 106-114 | 170 | 136 | M6 | 1,5x25 | Ø7X70 | 39,5 |
UPPER CLAMP
| CODE | SIZE | CLAMPING RANGE | L | H | M | SxB | N | C |
|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| NSSU50 | Ø50 | 49-51 | 105 | - | M5 | 1,2x20 | Ø7X70 | 37 |
| NSSU75 | Ø75 | 70-76 | 134 | - | M6 | 1,5x25 | Ø7X70 | 38 |
| NSSU110 | Ø110 | 106-114 | 170 | - | M6 | 1,5x25 | Ø7X70 | 38 |
